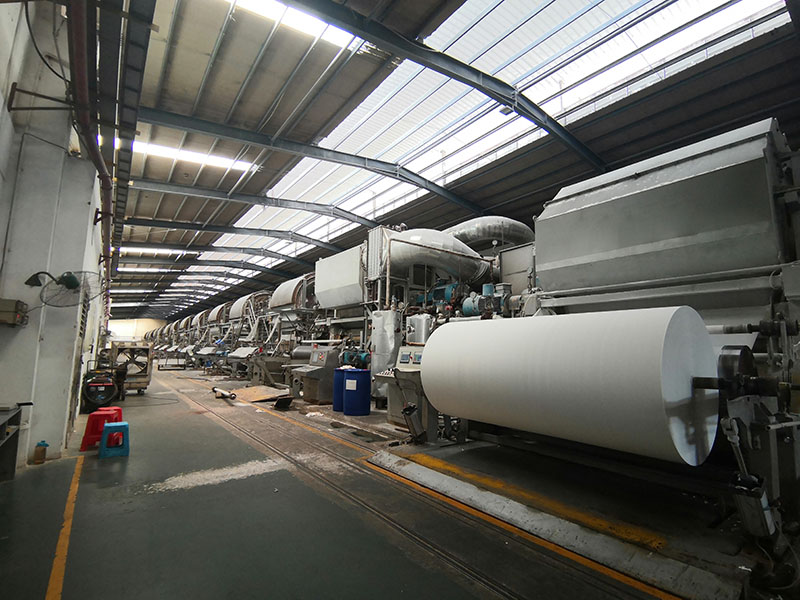

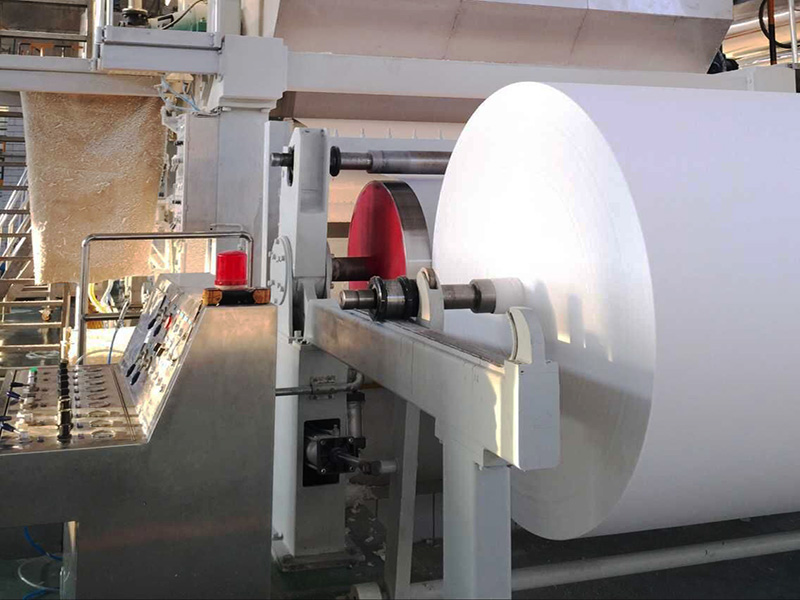

Cylinder mould toilet tissue paper machine, use virgin pulp to make good quality jumbo roll of tissue paper.
Shipping Port :
QingdaoLead Time :
2-3 MonthsWeight :
1-100 TonsMin. order :
1 SetOverview
This machine applies to make 13-40g/m2 tissue paper, toilet paper, napkin, facial tissue, etc. The maximum width on pope reel is 1575mm; the speed is 150-220m/min.
It could design with left-hand or right-hand type based on drive position.
Technological Condition
Raw material: |
recycled paper, virgin pulp |
concentration: |
0.2-0.4% |
Paper dryness |
|
Out of wire part: |
13—18% |
Go into dryer cylinder: |
35—38% |
Finished paper: |
90—92% |
Calculated running time: |
24h |
Design tension for felt: |
4KN/m |
Working tension: |
3KN/m |
Basic requirements for energy sources
Power sources
Motor voltage |
|
380VAC/50HZ |
three-phase |
220VAC/50HZ |
single-phase |
Control voltage: |
220VAC/50HZ |
Single-phase |
24VDC |
Compressed air
Air source pressure: |
0.7-0.8MPa |
Working pressure: |
≤0.6MPa |
Quality requirements: |
|
Air for meter: |
filtered, oilless, waterless |
Air for machine: |
common compressed air |
Air supply temperature: |
≤35℃ |
Water
Requirements: |
pure, colorless, desanding |
Pressure: |
2.0Mpa, 0.7MPa, 0.4MPa (High pressure water must be filtered by 40 filter mesh) |
PH value |
6-8 |
Solid content : |
< 60g/1000L |
Pressure for dryer cylinder
Working pressure: |
≤0.5MPa |
Testing pressure: |
1.0 MPa |
Basic data of paper machine
Output: |
Tissue paper, toilet paper, napkin, facial tissue |
Paper weight: |
13-35g/m² |
Wire width: |
1950mm |
Paper width on pope reel: |
1575mm |
Working speed: |
150-220m/min |
Design speed: |
250m/min |
Capacity: |
5-7 t/d |
Type of transmission: |
AC motor, FC and sectional driving |
Rail space: |
2400mm |
Type of pressurization: |
pneumatic pressurization |
Main drive power: |
50.5kw (dryer cylinder: 45kw, pope reel: 5.5kw) |
Overall dimension: |
13.9×5.9×5.8m(L×W×H) |
Arrangement form: |
Single-ply |
The heaviest piece: |
Dryer cylinder(about 15T) |
