2000 Corrugated Board Machinery

2000 corrugator production line

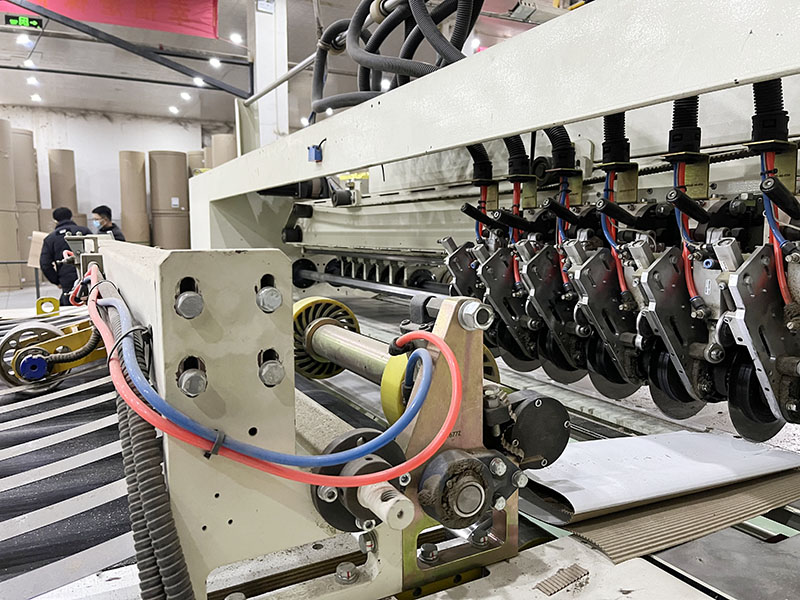

Auto slitting of corrugated board machine
NC cutter of corrugated board production line

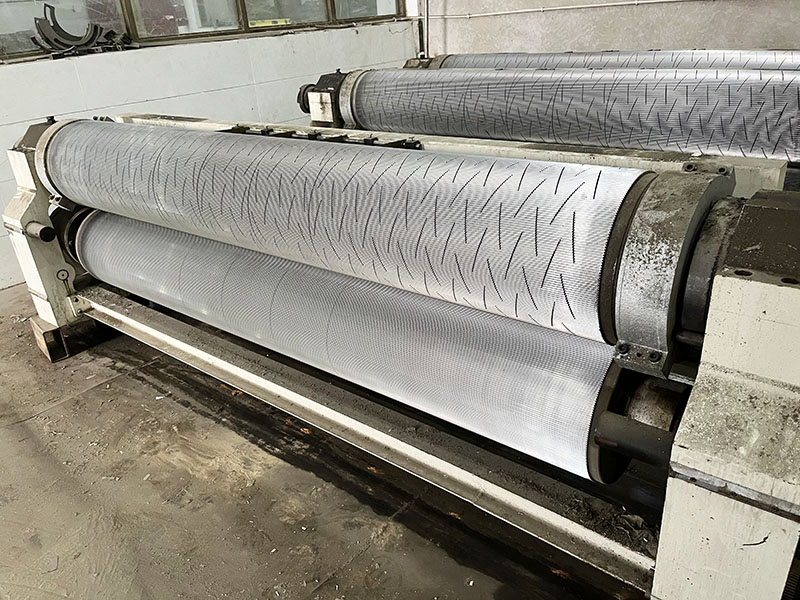

tungsten carbide corrugated roll
7 ply corrugated board making line
auto control corrugator machinery
2000 Corrugated Board Machinery

2000 Corrugated Board Machinery

7 Ply 2000mm Fully Automatic Corrugated Board Plant Machinery, With Servo Motor And PLC Control Cabinet

  • Payment :

    T/T, L/C
  • Color :

    Custom Made
  • Shipping Port :

    Qingdao
  • Lead Time :

    4-6 Months
  • Min. order :

    1 Set

Technical Parameter

Effective width

2000mm

Design produce speed

200m/min

Three layer economic speed

150-180m/min

Five layer economic speed

120-160m/min

Seven layer economic speed

100-130m/min

Maximum order change speed

100m/min

Longitudinal separation accuracy

±1mm

Cross-cutting precision

±1mm

Note:

Speed the above targets required to achieve:effective width2000mm, Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature.

Top paper index

100g/㎡--180g/㎡  Ring crush index(N.m/g)≥8    (Water containing8-10%)

Core paper index

80g/㎡--160g/㎡  Ring crush index(N.m/g)≥5.5  (Water containing8-10%)

In paper index

90g/㎡--160g/㎡  Ring crush index(N.m/g)≥6    (Water containing8-10%)

Steam requirement

The maximum pressure 16kg/cm²

Common pressure10-12kg/cm²

use4000kg/Hr

Electricity demand

AC380V 50Hz 3PH

Total power≈350KW

Running Power≈150KW

Compressed air

The maximum pressure 9kg/cm²

Common pressure4-8kg/cm²

use1m³/min

Space

≈Lmin100m*Wmin12m*Hmin5m(The actual drawing to provider to provide audited prevail)

Installation & Train

*Manufacturer will arrange 2-3 engineers to install whole production line.

*Buyer supply round air-ticket from Beijing to buyer’s factory fee, arrange lodge , food for engineers and local transport fee and supply 150US dollars fee per day for each engineer.

*Buyer should be arrange translators for train the operators during installing and test.

*Installing and test time: approximate 30 days.

*Help installing workers: at least 6 persons to help installing whole production line.

Quality Guarantee

1. Quality Guarantee period: one year after final acceptance

2. Within the period of quality guarantee, the Seller is obliged to supply technical assistance to the Buyer to ensure normal production. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by Seller’s poor materials, designing errors, and poor fabrication and assembly technology, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately.

3. Within the period of quality guarantee, in case of any defects or malfunctions, which have been proven to be caused by the Buyer using improper material, mis-operating and maintenance, upon receipt of the Buyer’s information in writing, the Seller will send its technicians immediately. The international air tickets (if necessary)
